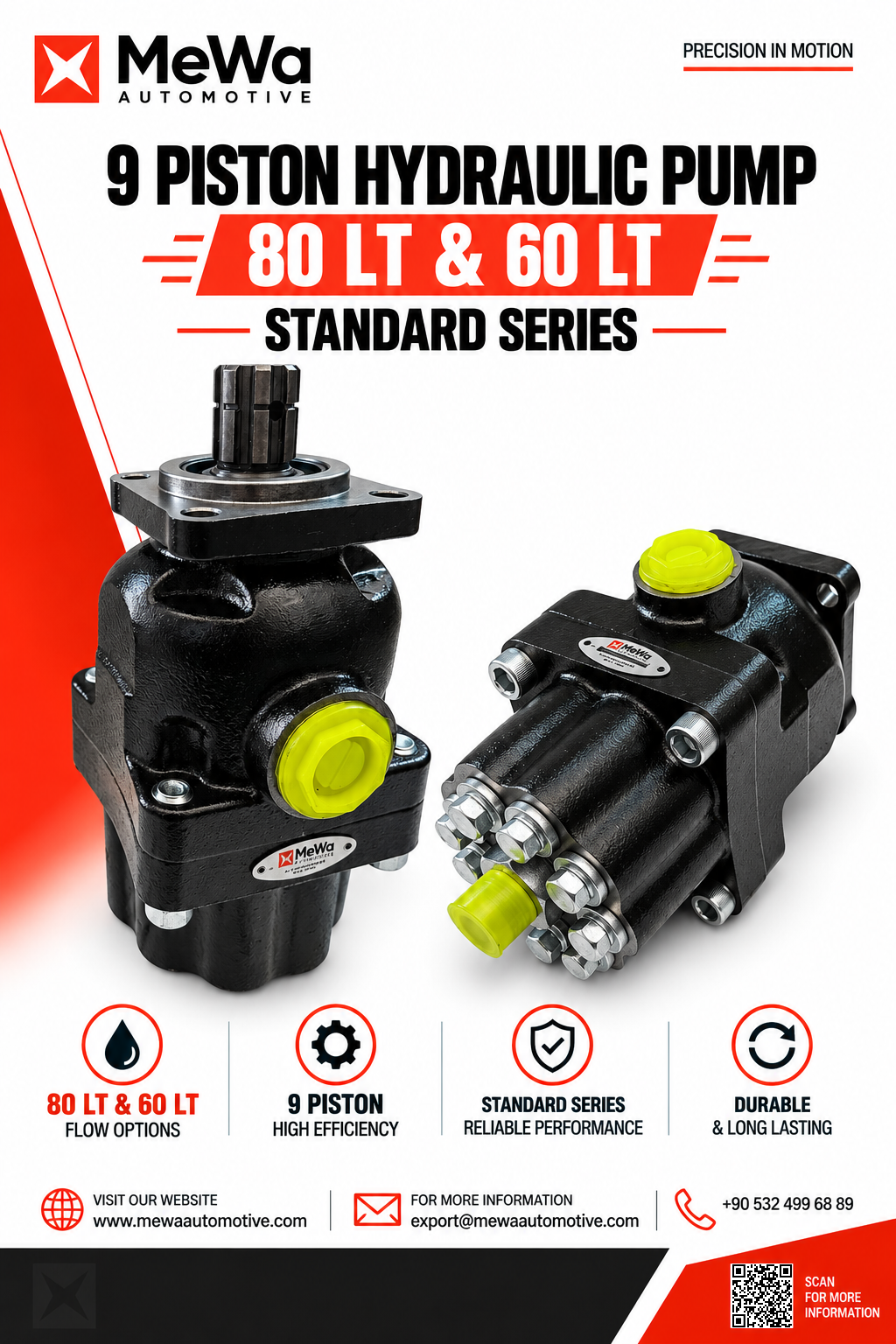

MeWa Hydraulic 9 piston Hydraulic Piston Pump is designed for reliable and efficient hydraulic power transmission in demanding applications.
This high-performance 9 piston Hydraulic Piston Pump is suitable for mobile and industrial hydraulic systems requiring consistent flow, reliable operation and efficient power transmission.
TECHNICAL HIGHLIGHTS
• 60 CC Displacement
• 9 piston Hydraulic Piston Pump
• CODE : PP009060NP
For technical specifications, compatibility and application details, please contact MeWa Automotive.
| CODE | PUMP TYPE | MAXIMUM CONT. PRESSURE (BAR/PSI) | MAXIMUM INT. PRESSURE (BAR/PSI) | MAXIMUM PEAK PRESSURE (BAR/PSI) | MAXIMUM CONT. SPEED (RPM) | MAXIMUM INT. SPEED (RPM) | INLET | WEIGHT | OUTLET | DISPLACEMENT (CM³/REV) |
|---|---|---|---|---|---|---|---|---|---|---|
| PP009060NP | 9 PISTON HYDRAULIC PUMP 60 LT | 190/2650 | 310/4360 | 360/5095 | 1000 | 1200 | G1 1/4″ | 18 | G1″ | 60 |
| PP009080NP | 9 PISTON HYDRAULIC PUMP 80 LT | 180/2610 | 300/4350 | 350/5075 | 1000 | 1200 | G1 1/4″ | 18.5 | G1″ | 80 |
