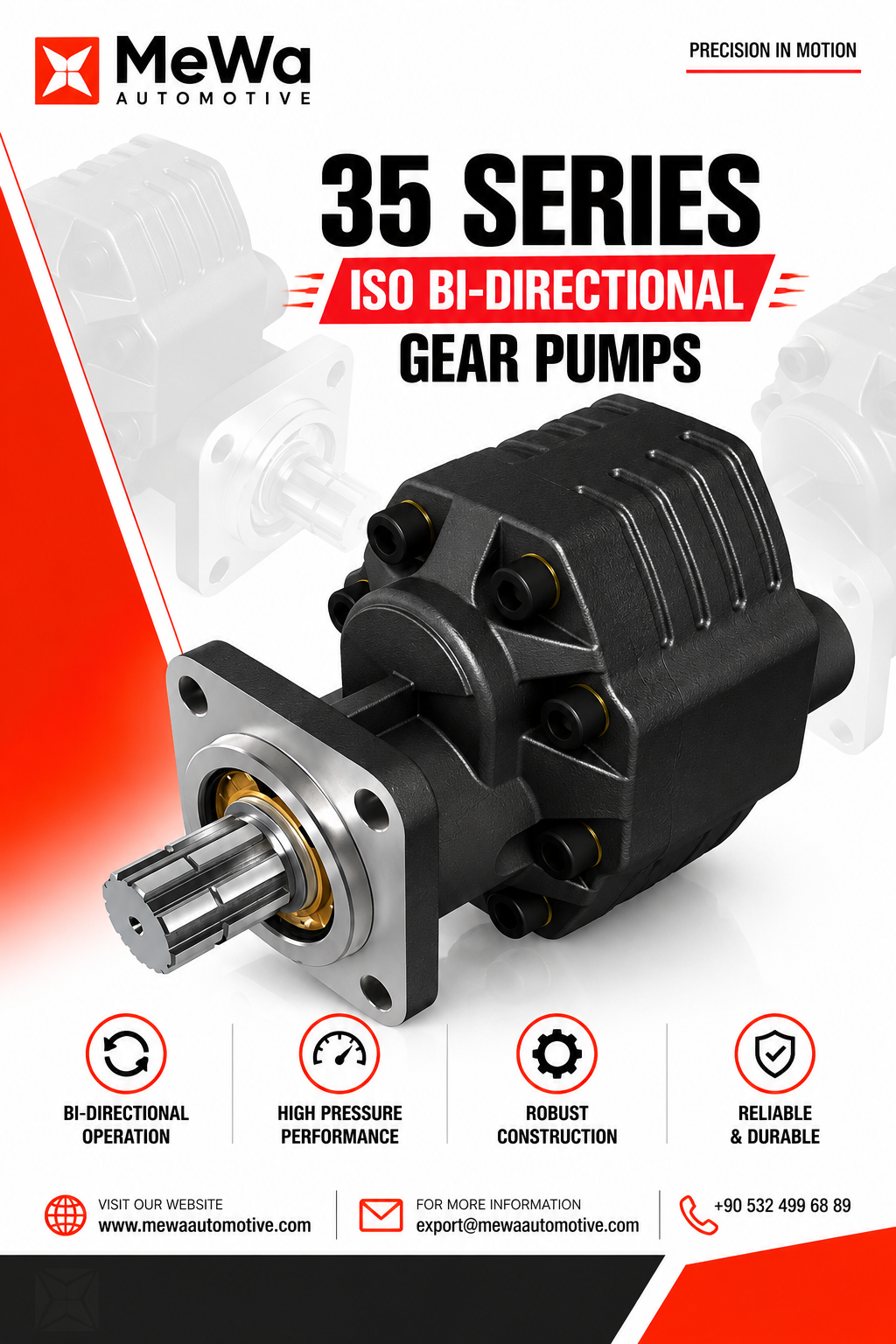

Mewa Hydraulic DPA 35-110 CC ISO Bi-Directional Gear Pump is designed for reliable and efficient hydraulic power transmission in demanding applications.
This 35 Series gear pump provides bi-directional operation with a 110 cm³/rev displacement and UNI mounting configuration. It is engineered for consistent performance, robust operation and long service life in hydraulic systems.
Ideal for mobile and industrial hydraulic applications where reliable flow, pressure performance and compact installation are required.
TECHNICAL HIGHLIGHTS
• 35 Series Gear Pump
• 110 cm³/rev displacement
• ISO mounting configuration
• Bi-directional operation
• Maximum continuous pressure: 240 bar
• Maximum intermittent pressure: 260 bar
• Maximum peak pressure: 280 bar
• Continuous speed: up to 1400 RPM
• Intermittent speed: up to 1600 RPM
.
.
.
.
.
.
.
.
.
.
.
.
| CODE | PUMP TYPE | MAXIMUM CONT. PRESSURE (BAR/PSI) | MAXIMUM INT. PRESSURE (BAR/PSI) | MAXIMUM PEAK PRESSURE (BAR/PSI) | MAXIMUM CONT. SPEED (RPM) | MAXIMUM INT. SPEED (RPM) | INLET | WEIGHT | OUTLET | DISPLACEMENT (CM³/REV) |
|---|---|---|---|---|---|---|---|---|---|---|
| GP3590ISOBD | DPA 35-90 CC GEAR PUMP ISO BI-DIRECTIONAL | 260/3770 | 280/4060 | 290/4200 | 1400 | 1600 | G1 1/4" | 17 | G1" | 90 |
| GP35110ISOBD | DPA 35-110 CC GEAR PUMP ISO BI-DIRECTIONAL | 240/3480 | 260/3770 | 280/4060 | 1400 | 1600 | G1 1/4" | 16 | G1" | 110 |
