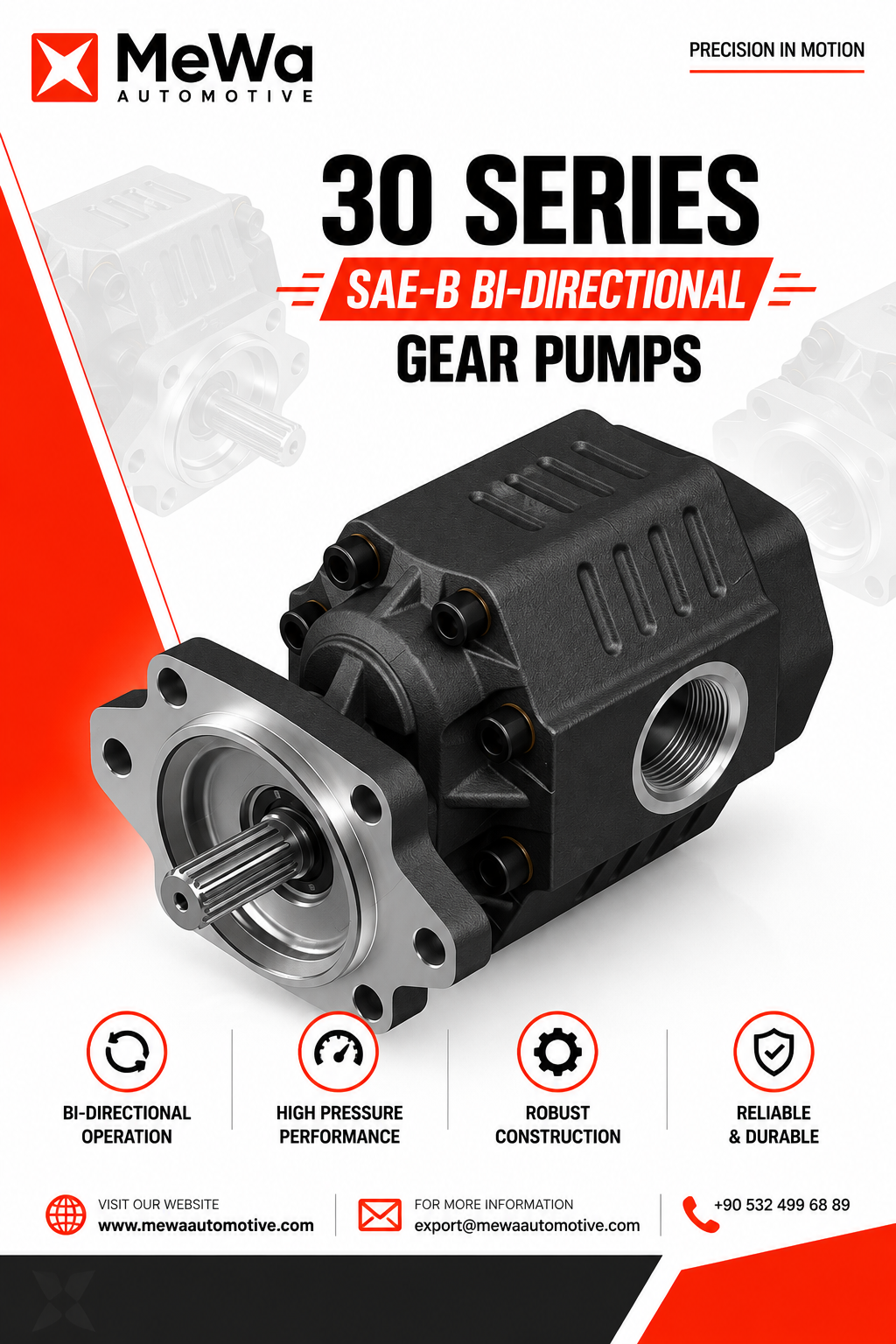

SAE B 71 cc BI-DIRECTIONAL GEAR PUMP

Mewa Hydraulic SAE-B 71 CC Bi-Directional Gear Pump is designed for reliable and efficient hydraulic power transmission in demanding applications.

This 30 Series gear pump provides bi-directional operation with a 71 cm³/rev displacement and SAE-B mounting configuration. It is engineered for consistent performance, robust operation and long service life in hydraulic systems.

Ideal for mobile and industrial hydraulic applications where reliable flow, pressure performance and compact installation are required.

TECHNICAL HIGHLIGHTS

• 30 Series Gear Pump
• 71 cm³/rev displacement
• SAE-B mounting configuration
• Bi-directional operation
• Maximum continuous pressure: 220 bar
• Maximum intermittent pressure: 240 bar
• Maximum peak pressure: 250 bar
• Continuous speed: up to 1400 RPM
• Intermittent speed: up to 1600 RPM
.
.
.
.
.
.
.
.
.
.
.
.

Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Description

CODE PUMP TYPE MAXIMUM CONT. PRESSURE (BAR/PSI) MAXIMUM INT. PRESSURE (BAR/PSI) MAXIMUM PEAK PRESSURE (BAR/PSI) MAXIMUM CONT. SPEED (RPM) MAXIMUM INT. SPEED (RPM) INLET WEIGHT OUTLET DISPLACEMENT (CM³/REV)
GP3043SAEBD SAE-B 30-43 CC GEAR PUMP BI-DIRECTIONAL 270/3900 290/4200 300/4350 1800 2300 G 1" 14 G 3/4" 43
GP3051SAEBD SAE-B 30-51 CC GEAR PUMP BI-DIRECTIONAL 240/3480 260/3770 280/4060 1800 2300 G 1" 14 G 1" 51
GP3061SAEBD SAE-B 30-61 CC GEAR PUMP BI-DIRECTIONAL 220/3190 240/3480 250/3625 1400 1600 G1 1/4" 15 G 1" 61
GP3071SAEBD SAE-B 30-71 CC GEAR PUMP BI-DIRECTIONAL 220/3190 240/3480 250/3625 1400 1600 G1 1/4" 15.5 G1" 71
GP3082SAEBD SAE-B 30-82 CC GEAR PUMP BI-DIRECTIONAL 190/2750 210/3040 220/3190 1400 1600 G1 1/4" 16 G1" 82
GP3090SAEBD SAE-B 30-90 CC GEAR PUMP BI-DIRECTIONAL 190/2750 210/3040 220/3190 1400 1600 G1 1/4" 16.5 G1" 90
